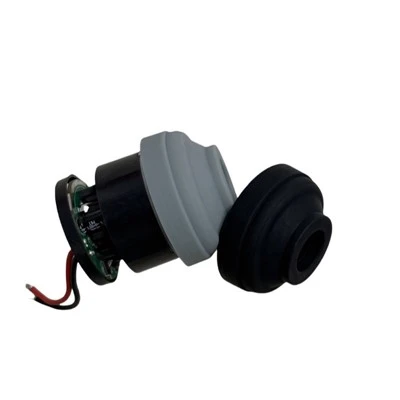

Electric Motor Protective Dust Sleeve
The Electric Motor Protective Dust Sleeve is a molded elastomer cover fitted around a motor housing, cable area or other exposed section. It is used on woodworking equipment, textile machinery, outdoor pumps and other industrial equipment where dust, moisture or oil mist can reach the motor exterior.
Technical Specifications
|
Material |
EPDM / Silicone / NBR |
|
Insulation Grade |
Excellent dielectric properties |
|
Flame Retardancy |
Options available meeting UL94 standards |
|
Temperature Range |
-40°C to +150°C |
Core Advantages
EPDM, Silicone or NBR Material Selection
EPDM, silicone and NBR are available material options. EPDM is used where weather and moisture are the main exposure, NBR suits oil mist, and silicone is selected when higher heat resistance or electrical insulation is required.
-40°C to +150°C Working Range
This sleeve family is specified for a working range of -40°C to +150°C. Within that range, the elastomer remains flexible through cold storage, seasonal outdoor conditions and warm motor-housing temperatures.
Dielectric and Flame-Retardant Options
Dielectric versions can be specified, and flame-retardant compounds are available for projects that require a UL94 rating. These material options may be used around terminals, cable exits and enclosed areas close to electrical components.
Customization
Motor Frame & Opening Geometry
Outer diameter, overall length, end openings and cable-exit positions can be matched to a motor drawing or physical sample. The sleeve can be made for a specific motor frame instead of relying only on stretch for fit.
Wall, Vent & Cable Features
Wall thickness, ventilation openings, cable necks and local reinforcement can be incorporated into the molded part. Their position is set around the motor's cooling path and wiring layout.
Color & Safety Marking
Color is set by project. Where the surface allows, logos, part identification or safety warnings can be molded or printed on the sleeve.
Quality Control
Inspection follows the motor features that the sleeve must fit around. End openings, cable exits, vent cut-outs and overall dimensions are checked against the approved drawing. Thin sections, tears, blocked openings and flash that could interfere with installation are rejected.
EPDM, NBR and silicone are controlled as separate material specifications. If dielectric or flame-retardant performance is required, the specified compound is verified against the project requirement rather than judged by color or appearance. Finished sleeves receive a final visual check before packing.
FAQ
Q: What is the production lead time?
A: Lead time is confirmed after the order quantity and current production load are reviewed.
Q: Which shipping term can you support?
A: FOB is available, including transport to the export port.
Q: Can the sleeve cover a rotating shaft or cooling fan inlet?
A: No. Rotating parts and cooling openings that are needed for operation must remain clear.
Q: Does the sleeve replace the motor's IP-rated enclosure?
A: No. The sleeve adds external protection, but it does not replace the motor's IP-rated enclosure.
